ESP32 E-Ink

ESP32 2.13 Inch E-Paper Screen DEPG0213BN TTGO T5

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (examples for Arduino-esp32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 8s
  • Refresh power: 26.4mW(typ.)
  • Driver chip:SSD1680
  • Display Driver:DEPG0213BN

This is a 2.13-inch DES electronic paper display with a resolution of 212x104 and communication via SPI interface

The driver IC includes gate buffer, source buffer, time control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and each panel provides a frame.

Wide operating temperature range: -20℃ ~ 60℃.

Code

from machine import SPI, Pin
import DEPG0213BN as epaper

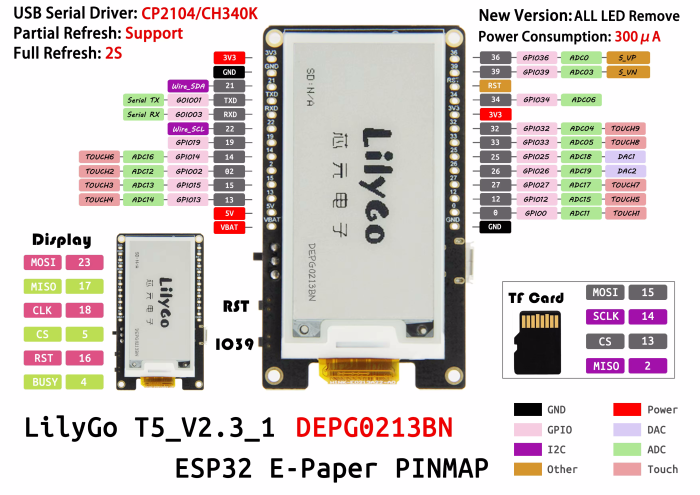

# Setup SPI bus. The pins are mandatory for the TTGO T5 V2.3
espi = SPI(2,
           baudrate=4000000,
           sck=Pin(18),
           mosi=Pin(23),
           polarity=0,
           phase=0,
           firstbit=SPI.MSB)

# The pins a mandatory for the TTGO T5 V2.3
rst = Pin(16, Pin.OUT, value=1)
dc = Pin(17, Pin.OUT, value=1)
cs = Pin(5, Pin.OUT, value=1)
busy = Pin(4, Pin.IN, value=0)

# Instantiate a Screen
screen = epaper.EPD(espi, cs, dc, rst, busy, rotation=epaper.ROTATION_90)

# Set all to white
screen.fill(1)

screen.text('Hello World!', 0, 0, 0)

# Write to the E-Ink display
screen.update()
DEPG0213BN.py
from micropython import const
from time import sleep_ms
import framebuf

# Display resolution
EPD_WIDTH = const(128)
EPD_HEIGHT = const(250)

# Some command OP-Codes
WRITE_RAM = b'\x24'
DISPLAY_UPDATE_CONTROL_1 = b'\x21'
DISPLAY_UPDATE_CONTROL_2 = b'\x22'

# Rotaion
ROTATION_0 = const(0)
ROTATION_90 = const(1)
ROTATION_180 = const(2)
ROTATION_270 = const(3)


LUT_SIZE_TTGO_DKE_PART = 153

PART_UPDATE_LUT_TTGO_DKE = bytearray([
    0x0, 0x40, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x80,
    0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x40, 0x40, 0x0, 0x0,
    0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x80, 0x0, 0x0, 0x0, 0x0, 0x0,
    0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
    0x0, 0x0, 0xF, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1, 0x0, 0x0, 0x0, 0x0, 0x0,
    0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
    0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
    0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0,
    0x0, 0x0, 0x0, 0x0, 0x1, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x1, 0x0, 0x0, 0x0,
    0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x22, 0x22, 0x22,
    0x22, 0x22, 0x22, 0x0, 0x0, 0x0])

class EPD(framebuf.FrameBuffer):
    def __init__(self, spi, cs, dc, rst, busy, rotation=ROTATION_0):
        self.init_spi(spi, cs, dc, rst, busy)
        self.init_buffer(rotation)

    def init_buffer(self, rotation):
        self._rotation = rotation
        size = EPD_WIDTH * EPD_HEIGHT // 8
        self.buffer = bytearray(size)

        if self._rotation == ROTATION_0 or self._rotation == ROTATION_180:
            self.width = EPD_WIDTH
            self.height = EPD_HEIGHT
        else:
            self.width = EPD_HEIGHT
            self.height = EPD_WIDTH

        print('width:{}, height:{}'.format(self.width, self.height))

        super().__init__(self.buffer, self.width, self.height, framebuf.MONO_HLSB)
        self.hard_reset()

    def init_spi(self, spi, cs, dc, rst, busy):
        self.spi = spi
        self.spi.init()
        self.cs = cs
        self.dc = dc
        self.rst = rst
        self.busy = busy
        self.cs.init(self.cs.OUT, value=1)
        self.dc.init(self.dc.OUT, value=0)
        self.rst.init(self.rst.OUT, value=0)
        self.busy.init(self.busy.IN, value=0)

    def _command(self, command, data=None):
        self.cs(1)
        self.dc(0)
        self.cs(0)
        self.spi.write(command)
        self.cs(1)
        if data is not None:
            self._data(data)

    def _data(self, data):
        self.cs(1)
        self.dc(1)
        self.cs(0)
        self.spi.write(data)
        self.cs(1)

    def _wait_until_idle(self):
        while self.busy.value() == 1:
            sleep_ms(10)

    def hard_reset(self):
        self.rst(1)
        sleep_ms(1)
        self.rst(0)
        sleep_ms(10)
        self.rst(1)

    def update_common(self):
        self._command(b'\x12')
        self._wait_until_idle()
        # Set RAM entry mode 3 (x increase, y increase : normal mode)
        self._command(b'\x11', b'\x03')
        self._command(b'\x44', b'\x01\x10')
        self._command(b'\x45', b'\x00\x00\xf9\x00')
        self._command(b'\x4e', b'\x01')
        self._command(b'\x4f', b'\x00\x00')

    def update(self):
        self.update_common()
        self._command(WRITE_RAM, self._get_rotated_buffer())
        self._command(b'\x20')
        self._wait_until_idle()

    def update_partial(self):
        self.update_common()
#https://github.com/lewisxhe/GxEPD/blob/master/src/GxDEPG0213BN/GxDEPG0213BN.cpp

#     // set up partial update
        self._command(b'\x32', PART_UPDATE_LUT_TTGO_DKE)
        self._command(b'\x3F', b'\x22')
        self._command(b'\x03', b'\x17')
        self._command(b'\x04', b'\x41\x00\x32')
        self._command(b'\x2C', b'\x32')
        self._command(b'\x37', b'\x00\x00\x00\x00\x00\x40\x00\x00\x00\x00')
        self._command(b'\x3C', b'\x80')
        self._command(b'\x22', b'\xC0')
        self._command(b'\x20')
        self._wait_until_idle()

#    // send data
        self._command(WRITE_RAM, self._get_rotated_buffer())

#    // commit as partial
        self._command(b'\x22', b'\xCF')
        self._command(b'\x20')
        self._wait_until_idle()

#    // data must be sent again on partial update
        self._command(b'\x24')
        sleep_ms(300)
        self._command(WRITE_RAM, self._get_rotated_buffer())
        sleep_ms(300)

#    @micropython.native
    def _get_rotated_buffer(self):
        # no need to rotate
        if self._rotation == ROTATION_0:
            return self.buffer
        # create buffer and rotate
        size = EPD_WIDTH * EPD_HEIGHT // 8
        fbuffer = memoryview(bytearray(size))
        frame = framebuf.FrameBuffer(
            fbuffer, EPD_WIDTH, EPD_HEIGHT, framebuf.MONO_HLSB)
        # copy buffer
        if self._rotation == ROTATION_270:
            for x in range(self.width):
                for y in range(self.height):
                    frame.pixel(y, EPD_HEIGHT-x-1, self.pixel(x, y))
        if self._rotation == ROTATION_90:
            for x in range(self.width):
                for y in range(self.height):
                    frame.pixel(EPD_WIDTH-y-1, x, self.pixel(x, y))
            frame.scroll(-6, 0)
        if self._rotation == ROTATION_180:
            for i in range(size):
                fbuffer[size-i-1] = self.buffer[i]
            frame.scroll(-6, 0)
        return fbuffer
